8.0 inch Standard TFT without Touchscreen

Model:BR080WSE3064-A4 V.1 Size:8.0" Diagonal | 800x480 Pixels Display Type:Standard Touchscreen:None Interface:RGB Resources: 080WSE3064-A4 V.1-SPEC

Inquiry Custom

DESCRIPTION

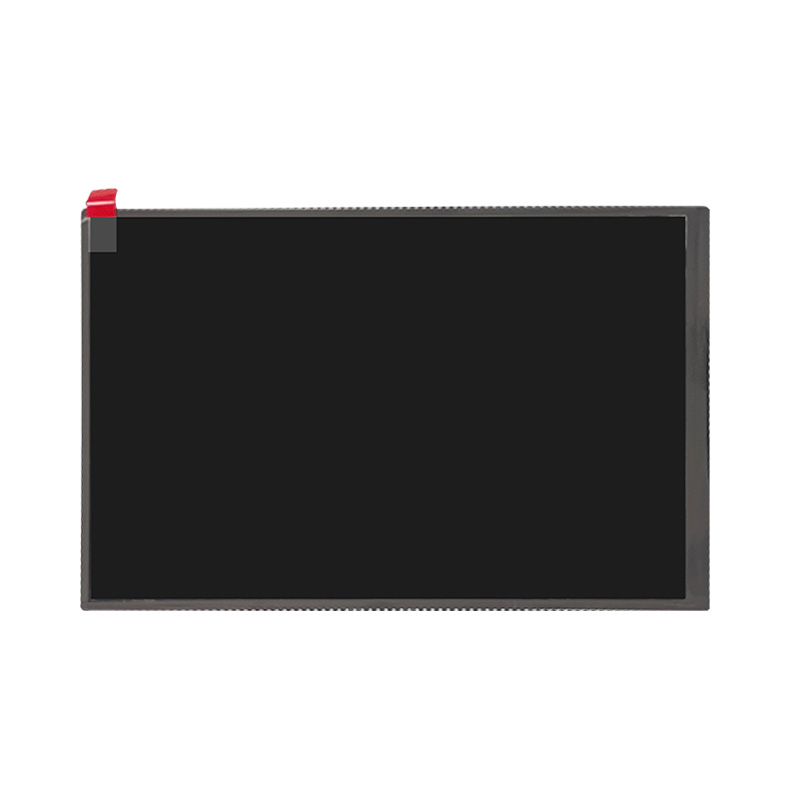

BR080WSE3064-A4 V.1 Introduction

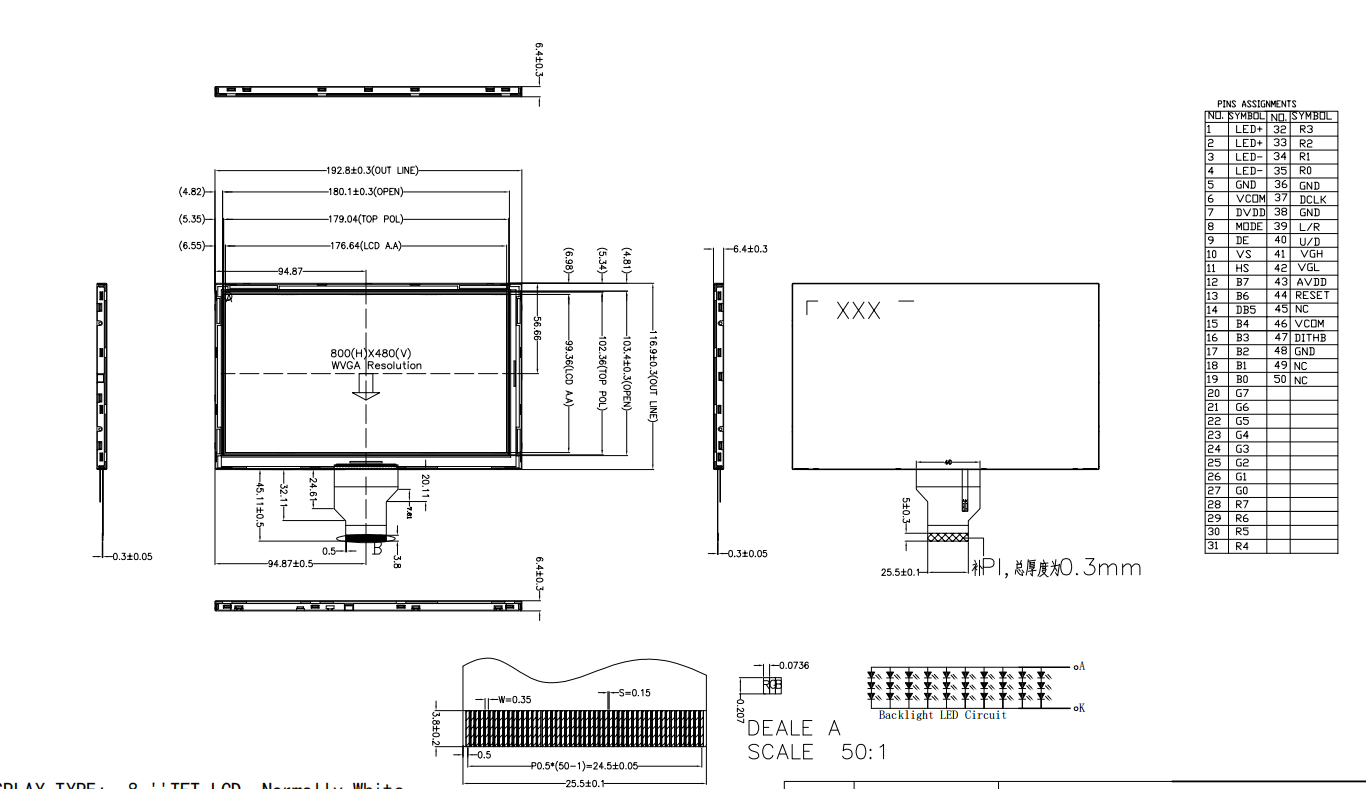

Sure, the BR080WSE3064-A4 V.1 is a TFT/Transmissive LCD module with dimensions of 192.80116.906.40mm and an active size of 176.6499.36mm. With a pixel pitch of 0.22080.2070, it offers a resolution of 800*480 pixels.

This model is driven by the ICs NT52001 and NT39419B and operates using a 24-bit RGB interface. The top polarizer is Anti-Glare, providing a comfortable viewing experience in different lighting conditions. It is optimized for viewing from the 12 o'clock direction, while the gray scale inversion direction is at 6 o'clock.

Supporting 16.7 million colors, this module ensures a rich and vibrant display. It uses 30 white LEDs for backlighting, providing a bright and clear display. Please note, this model, BR080WSE3064-A4 V.1, does not come with a touch panel.

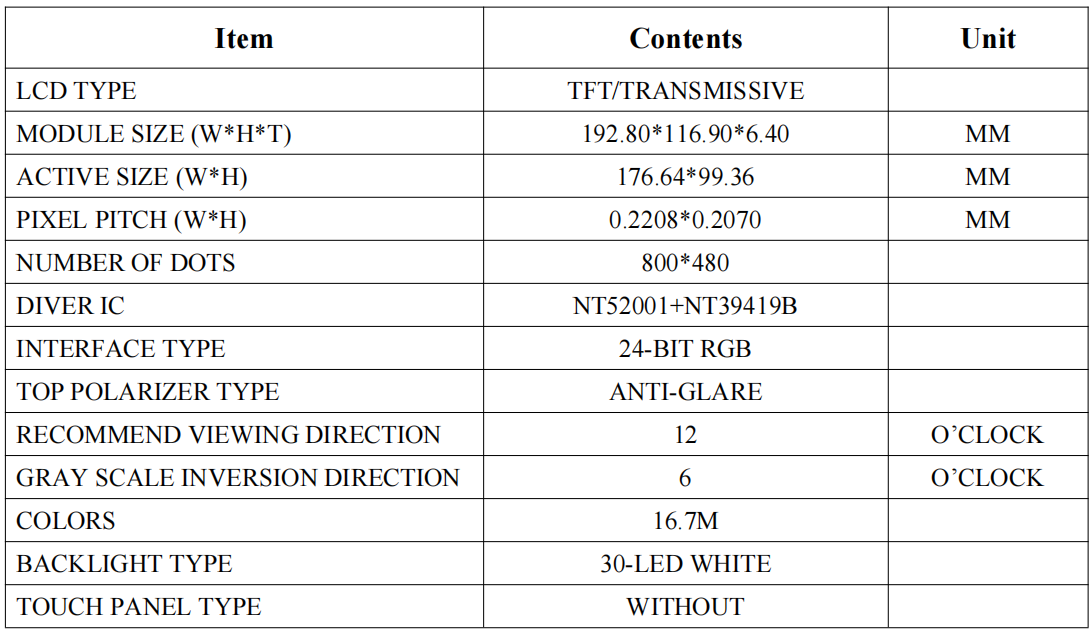

Correlation Parameter

tft lcd display-7161

BR080WSE3064-A4 V.1 Custom Solutions

TOUCHSCREEN ENHANCEMENT

Boost your device’s interactivity with our advanced touchscreen technology. We tailor the panel shape and glass thickness to your requirements, enhancing your product’s user experience.
CUSTOM CABLE DESIGN

Steady and efficient hardware connections play a vital role in guaranteeing optimal display performance. Our bespoke cabling solutions ensure consistently stable and efficient connectivity, supporting your display unit’s essential operations.
INTERFACE CUSTOMIZATTFT CUSTOM

Upgrade your device's performance with our custom display interface solutions. We offer a wide range of commonly used interfaces, such as MIPI, TTL/RGB, MCU, LVDS, EDP, and SPI, tailored to meet your specific device requirements for maximum efficiency.
COVER GLASS CUSTOMIZATION

Protect and enhance your display with our premium cover glass solutions. Our customized options, including appropriate thickness and optical bonding, ensure long-lasting durability and superior performance.
SOFTWARE/FIRMWARE CUSTOMIZATION

Elevate display performance and user experience with our customized software and firmware solutions. We optimize the user interface to meet your device's specific needs, ensuring maximum operational efficiency.
INTELLIGENT CONTROL BOARD

Utilizes high-performance processors and advanced algorithms to achieve fast response and high-efficiency data processing capabilities. Supports various communication protocols to ensure seamless connection with external devices.
BACKLIGHT CUSTOMIZATION

We offer comprehensive backlight customization services to meet unique requirements. Our team collaborates closely with customers to develop tailored solutions that enhance the visibility and performance of our TFT LCD display modules, precisely matching application needs.
RESOLUTION CUSTOMIZATION

We offer resolution customization services to meet unique visual requirements. Our team collaborates closely with customers to develop tailored resolutions that enhance the clarity and performance of our TFT LCD display modules, precisely matched to application needs.
CUSTOM MOUNTING OPTIONS

Mounting Add-Ons: We offer a range of custom mounting options for our TFT display modules. These include various mounting brackets, bezels, and other accessories designed to ensure secure and precise installation in a variety of applications.
